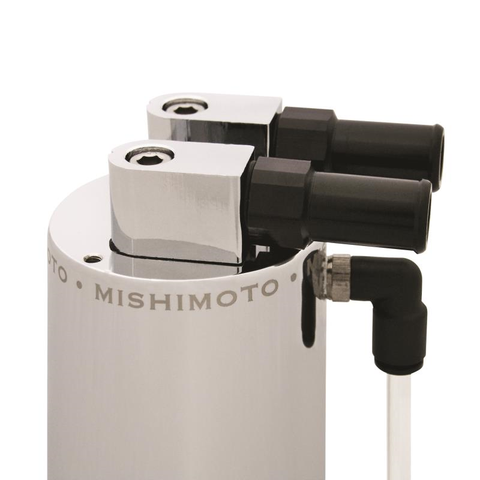

Mishimoto Aluminum Oil Catch Can - Small (MMOCC-SA)
MishimotoSmall Universal Aluminum Catch Can by Mishimoto
The Mishimoto Aluminum Oil Catch Can will prevent a harmful buildup of oil inside of the turbocharger, intake manifold, intercooler and piping. Our catch can prevents oil from getting into pressurized turbo plumbing and stops oil vapors from getting into the intake system that would ultimately lead to lower combustion temperatures and reduced overall efficiency.
The polished Mishimoto Aluminum Oil Catch Can comes complete as a kit containing a mounting bracket, hose, all necessary clamps, fittings, and mounting hardware, for a perfect upgrade in performance and aesthetics for your car. This oil catch can, as with all our catch cans, comes with the unparalleled Mishimoto Lifetime Warranty you know and trust.
Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.
Features
- Separates oil particles from PCV/CCV air
- Defends intercooler, intake system, and essential components from oil blow-by
- Made from lightweight aluminum
- Compact design makes for easy engine bay placement

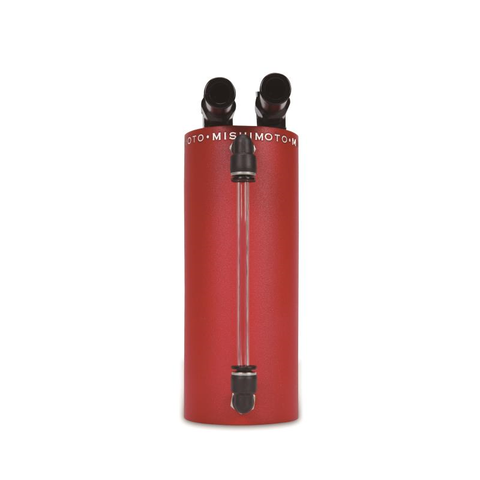

- Checking fluid levels made easy with built in sight tube
- Comes complete with mounting bracket, hose, all necessary clamps, fittings, and mounting hardware

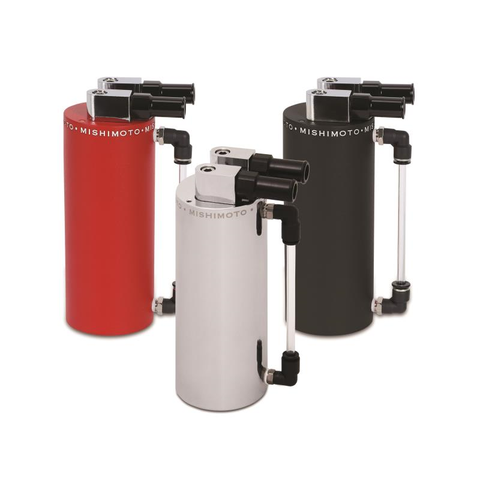

- Available in your choice of polished aluminum, wrinkle black, or wrinkle red finish
- Capacity: 480cc (16 fl. oz)
- Mishimoto Lifetime Warranty
Applications
- Universal
Specifications
- Material - 6061 Aluminum
- Capacity - 480cc
- Overall Height - 7.0in
- Overall Diameter - 2.5in
- Inlet - M12x1.0
- Outlet - M12x1.0
- Drain Plug Thread Size - M14x1.25
- Assembled Weight - 0.95lbs

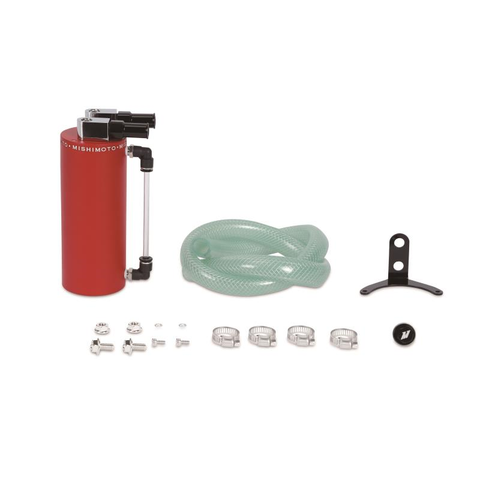

What's In The Box?
- 1 - Aluminum Tank
- 2 - Black fittings 10mm I.D.
- 1 - Black bracket
- 2 - Allen bolts
- 2 - Allen bolt washers
- 1 - Black magnetic drain plug
- 1 - Dowty seal
- 2 - Small clamps
- 2 - Bolts
- 2 - Nuts
- 1 - 80cm reinforced hose
Warranty
- Mishimoto Lifetime Warranty
Customer Reviews
I was never good at typing essays, so I will not try and top Gearheadcentrals review.
Great quality for the price, love the fact it comes with hardware unlike other products for the same price . Great packaging and Love the mirror finish!
1. In the box: The package came through FedEx, got both of them for a solid deal through MAP. I opened the box only to find a second box inside of it. The contents were wrapped and protected, the outer box had a bunch of paper inside to prevent the inner box from bouncing around. Everything was delivered safe and sound, no damages at all.
Inside, Mishimoto packed everything you would need for the install. Everything was as described, in terms of description there's no complaints whatsoever.
Packaging: 10/10
Contents as described: 10/10
2. First impressions: Out of the box, I picked up the can and kept staring at my beautiful self thanks to the mirror finish. I also couldn't help to worry about the size of the large one since the small one was already huge. The above fittings are plastics, and so are the pieces holding them. They are barely adjustable, not as I pictured. Whenever tightening the fittings, it feels like I might just end up breaking the plastic, and I never know when I will reach that point since it always feels like it could be tightened some more.
Then we get to the bracket, and we remember that this is a UNIVERSAL catch can. The quality of the bracket and all the necessary nuts and bolts was top notch, no complaints there.
Quality of parts: 7.5/10

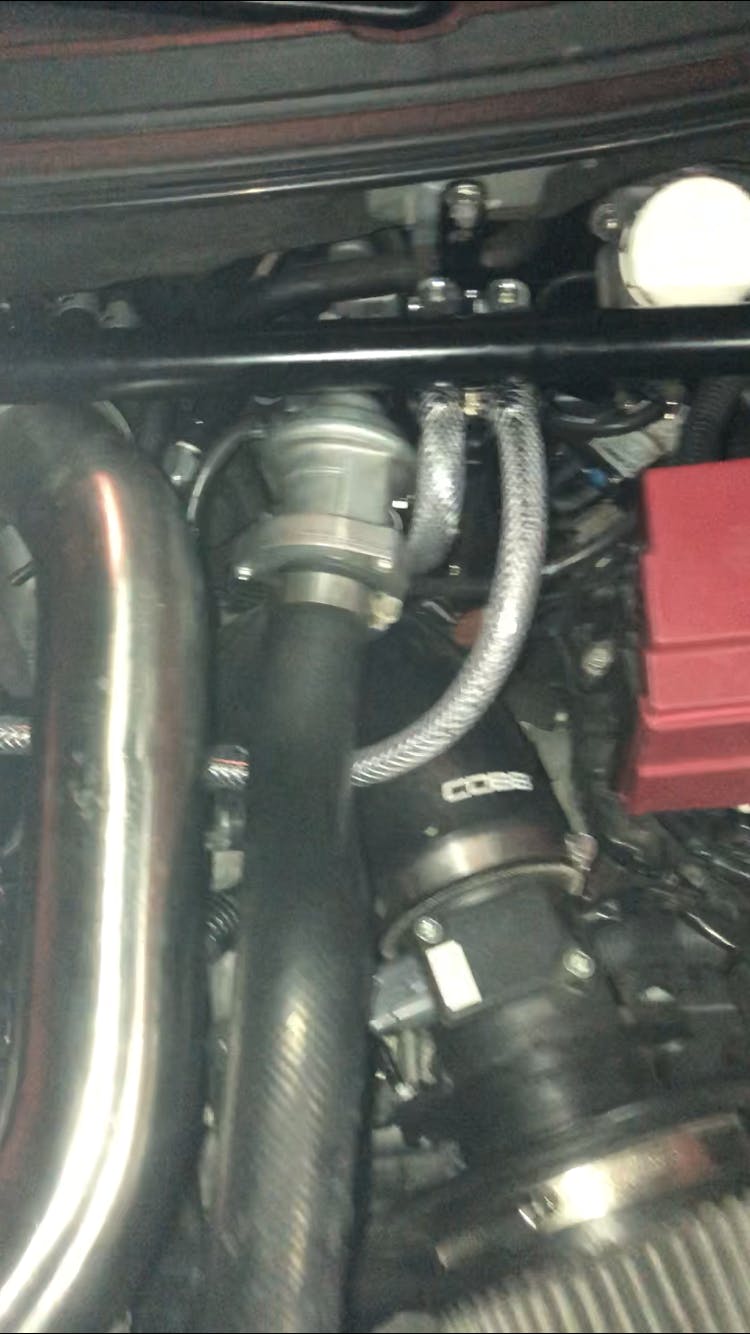

3. Installation: I gotta remind myself that this is a universal catch can, so I'll be easy on this section. I literally had to park my car at a home depot parking lot to perform this. I ended up getting two custom brackets per can, bolting one on the firewall (as seen in the first picture) and the other on the front bar.
Overall the fitment was okay, took a bit of mending and bending here and there. The hose was ridiculously short, but then home depot carried a similar hose for five or six bucks for a roll of 10 feet or so. There will be no fitment rating since this is a universal fit, but I will rate it on the ease of installation.
Fitment: NA
Ease of installation: 7.5/10
4. Performance:
The hose is...
