Fueltech Wide-Band O2 Sensor Display (3010003841)

Wide-Band O2 Sensor Display by Fueltech

The WB-O2 Nano features an extended reading scale down to 0.35 λ*, compact size, and CAN communication with our Power FT line ECUs. This is very useful when using an O2 sensor per cylinder.

The O2 sensor reading is sent via CAN to the ECU and recorded in the internal datalogger, without using any analog input.

Features

• Waterproof (IP67)
• Extended reading scale 0.35λ to 9.99λ, 5.15 to 147 Gas A/FR, 2.24 to 64 Alcohol A/FR*
• Wideband O2 sensor display and conditioner for Bosch LSU 4.2 sensors
• 0-5V analog output for connection with stand-alone ECU or external datalogger (WB-O2 Datalogger, PRO24 Datalogger)
• Bosch amplification and control circuit
• Update via CAN (FT500 connection required)
• WB-O2 Nano has replaced the previous WB-O2 Meter Slim

Benefits

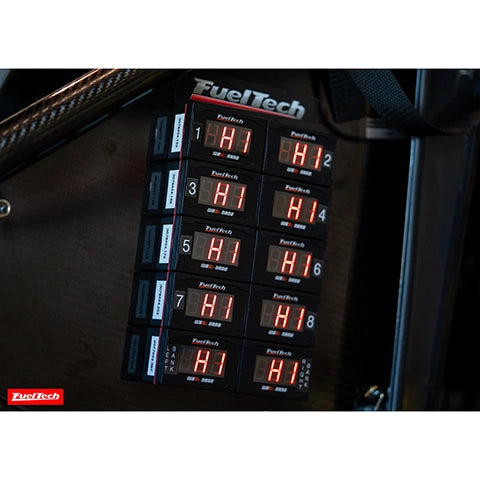

• Allows several conditioners connected to the CAN network, for use with individual cylinder reading or bank reading
• CAN communication with FT600 / FT550 / FT500 / FT500LITE / FT450: sends the O2 reading via CAN to the ECU, freeing up the analog inputs

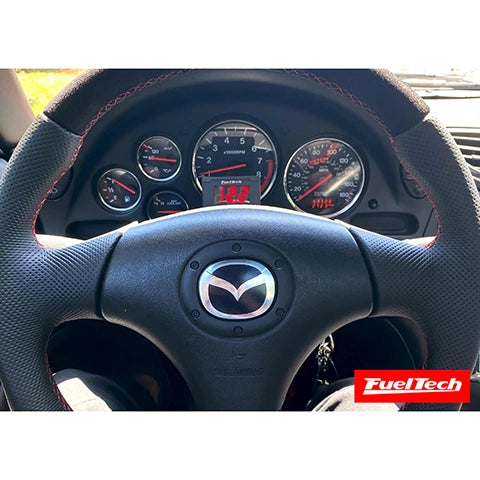

• Easy viewing and small size

Applications

• Universal

What's In The Box?

• 1 - Wide-band O2 Display

References

• WB-O2 NANO Manual
• Software FTManager
• WB-O2 NANO CAD

Warranty

• Fueltech's Standard 1-Year Limited Warranty
