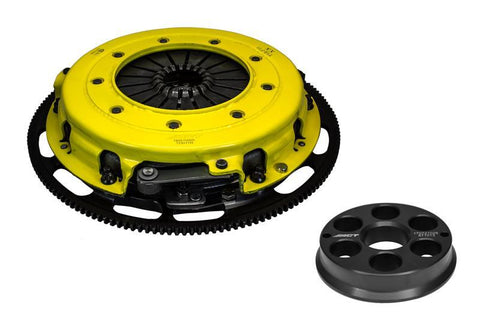

ACT Twin Disc HD Street Clutch Kit | 2007-2014 Ford Mustang Shelby GT500 (T1S-F11)

Twin Disc Heavy Duty Street Clutch Kit by ACT

T1S-F11 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear.

ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength.

All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

Features

• A low to moderate pedal feel; smooth engagement with stock to low gear rattle
• Offers twice the number of disc surfaces for better wear, heat capacity, and longer life
• Premium organic friction materials for faster recovery from overheating
• Prevents warping of mating surfaces
• Recommended for high horsepower street or race use
• Pressure plate and flywheel are dynamically computer balanced for trouble-free installation and smooth operation at high RPM

Please Note: If vehicle is equiped witht he shorter late CSC measuring 2-1/8", the spacer included in the kit must be installed. Do no install the spacer if using the taller CSC.

Applications

• 2007 - 2014 Ford Mustang Shelby GT500

Specifications

• Product Weight (lbs.): 45.7
• SFI: 1.2
• Tooth Quantity: 164
• Input Shaft Diameter: 1.0"
• Torque Capacity Over OE: 38%
• Torque Capacity: 891 ft/lbs
• Disc Diameter: 267mm (10.5")
• Spline Count: 23

What's In The Box?

• 1 - HD Pressure Plate
• 2 - Rigid Hub Organic Discs

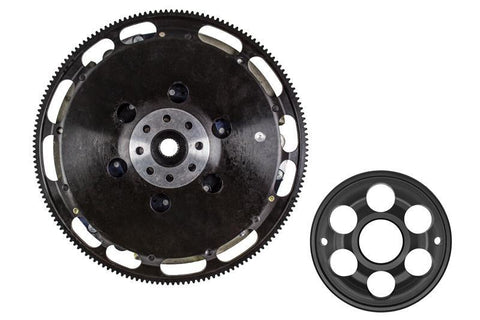

• 1 - Flywheel
• 1 - Floater Ring
• 1 - Alignment Tool
• Pilot & Release Bearings (if applicable)

Warranty

• ACT Limited 12-Month Warranty
